If you’ve spent any time tinkering with or manufacturing electronics, you’ve hit this frustrating wall.
The PCBA passes every inspection with flying colors. Electrical tests check out perfectly. On paper, it’s a flawless build.
Then final assembly rolls around — and chaos ensues.
Connectors refuse to line up with the enclosure cutouts. The product behaves erratically once slotted into its housing. Boards that aced testing get cracked during installation. Finished units show up with scratches, loose wires, or cosmetic blemishes that sink the whole batch.
And every single time, the same question hangs in the air:
If the PCBA passed, why is the product failing?
The answer is uncomfortable, but critical to face:
PCBA testing is a vital checkpoint — but it’s nowhere near the end of the manufacturing story.
Most post-PCBA failures aren’t electrical gremlins. They’re system-level disasters — triggered the second the board leaves the test fixture and enters the real world of assembly, enclosures, and shipping.
Let’s break down the hidden culprits, with real-world examples and actionable fixes you can implement today.
1. Electrical Success ≠ Mechanical Compatibility
PCBA testing answers one narrow question: Does this circuit work electrically?
Final assembly throws a completely different set of challenges at you.
Once that board is bolted, clipped, or glued into its housing, mechanical factors take center stage — and they don’t care about your electrical test results:
- Connectors that check out electrically but are millimeters off from the enclosure’s ports
- Tight internal spaces that force cables and components to rub against each other (a recipe for short circuits down the line)
- Stress from over-tightened screws or rigid snap-fit designs that warps the PCB over time
- Uneven support points that cause the board to bend when the enclosure lid is closed
A PCBA can perform flawlessly on the test bench, exposed to open air and zero physical stress — then become unstable the second it’s constrained inside a product housing. Electrical compliance is the baseline. Mechanical fit is what makes your product assemblable reliably.
Real-World Example & Quick Fixes
Last quarter, we consulted for a client building industrial temperature sensors. Their PCBA passed all electrical validation, but 30% of units failed in assembly because the USB-C connector was 0.8mm misaligned with the enclosure port. Technicians were forcing the connector into place, cracking the PCB trace every time.
The fix was twofold:
- We redesigned the PCB with a floating connector mount that absorbed minor alignment variations during assembly.
- We added alignment pins to the enclosure, guiding the PCBA into the correct position without manual force.
For your team, start with these steps:
- Use 3D CAD mockups to test PCB-enclosure fit before production — don’t wait until physical prototypes.
- Specify clear tolerance ranges for connector placement (±0.3mm is a safe baseline for most consumer electronics).
- Avoid over-constraining the PCB; use standoffs instead of rigid screw mounts where possible.
2. Lab Testing Is a Fantasy — Real Products Live in the Trenches
Let’s be honest: Most PCBA tests are run in ideal conditions. Stable room temperature. No vibration. No enclosure trapping heat. No long-term stress on components or solder joints.
But your customers aren’t going to use your product in a lab.
Once assembled and shipped, that PCBA faces the harsh realities of the real world:
- Heat buildup from tightly packed components, with nowhere to escape in a sealed enclosure
- EMI interference between closely placed sensors, microcontrollers, and power supplies — a problem you never saw in isolated testing
- Bumps, jolts, and vibrations during shipping that weaken solder joints
- Constant tension from fixed cables that pull on connectors day in and day out
These issues don’t show up during PCBA testing. They rear their ugly heads later — when design changes require retooling, rework costs skyrocket, and deadlines slip.
Real-World Example & Quick Fixes
A medical device manufacturer we worked with ran into this exact problem. Their patient monitor PCBA passed 8-hour thermal tests in the lab, but in the field, the sealed enclosure trapped heat from the power module, causing the microcontroller to shut down at 40°C (well below the component’s rated 85°C threshold). The lab had only tested the PCBA alone — not with the full enclosure and adjacent components.
The solution:
- We added a heat-dissipating pad between the power module and the enclosure, creating a passive cooling path.
- We revised the testing protocol to include enclosure-included thermal cycling — simulating real-world operating conditions before mass production.
For your projects:
- Invest in thermal simulation tools (like ANSYS Icepak or SolidWorks Simulation) to model heat buildup before building physical prototypes.
- Run vibration and shock tests that mimic shipping conditions (ISTA 3A is a standard for consumer electronics).
- Avoid overcrowding components; leave 2–3mm of clearance between high-power parts and heat-sensitive chips.

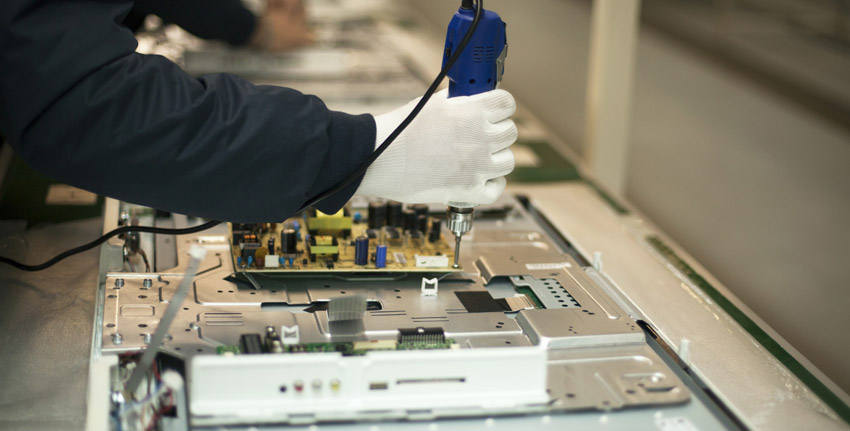

3. Assembly Introduces Human and Process Variables That Break Perfect PCBs
PCBAs are built with automated precision — which is why their quality is so consistent.
Final assembly? That’s a different beast. It involves people, tools, and step-by-step processes — and every step is a chance for variation to sneak in:
- A technician tightening screws too much (or not enough) that stresses the board
- Cables routed incorrectly, pinching against sharp enclosure edges
- Electrostatic discharge (ESD) from ungrounded hands frying sensitive components during manual handling
- An assembly order that forces workers to jam components into place, putting unnecessary strain on fragile parts
Even a perfect PCBA can turn into a dud if your assembly process isn’t tightly controlled.
Real-World Example & Quick Fixes
A consumer electronics brand saw a 25% failure rate in their wireless speaker PCBA — not because of the board itself, but because of a flawed assembly sequence. Technicians were installing the battery after securing the PCBA, forcing them to bend the board to fit the battery leads. Over time, this flexing cracked the solder joints on the Bluetooth module.
The fix was simple:
- We revised the assembly work instructions to install the battery first, then mount the PCBA on top of the leads (eliminating the need to bend the board).
- We added ESD wrist strap stations at every assembly bench and required daily training checks for technicians.
For your assembly line:
- Create detailed work instructions with photos for every step — avoid vague guidelines like “attach the cable.”
- Use torque-limiting screwdrivers to prevent over-tightening (critical for PCBs with fragile components like BGA chips).
- Implement a “first article inspection” (FAI) for every new batch — test the first 5 units to catch process errors early.
4. Packaging Isn’t Logistics — It’s the Final Manufacturing Step (And It Matters)
Packaging is often treated as an afterthought — something to figure out once the product is built. But that’s a costly mistake.
Packaging is the last stage of manufacturing. Get it wrong, and all your hard work on the PCBA and assembly goes down the drain:
- Flimsy packaging that lets boards bounce around during shipping, causing mechanical damage
- Lack of ESD protection that zaps components before they even reach the customer
- Rigid foam inserts that bend connectors or scratch PCBA surfaces
- Poorly designed boxes that lead to cosmetic defects — defects that trigger rework, returns, or customer complaints
If your product gets damaged between the factory floor and the customer’s hands, your manufacturing process wasn’t finished. It was abandoned.
Real-World Example & Quick Fixes
A startup building IoT gateways learned this lesson the hard way. They used generic bubble mailers to ship their PCBAs to the assembly partner — and 10% of boards arrived with bent GPIO pins or ESD-damaged sensors. The startup thought they were saving money on packaging; instead, they paid for rework and delayed production by two weeks.
The fix:
- We switched to anti-static ESD bags with foam inserts custom-cut to fit the PCBA’s shape (preventing pin bending).
- We added a “packaging inspection” step to the manufacturing checklist — every board is checked for damage before it leaves the factory.
For your packaging strategy:
- Match the packaging to the PCBA’s fragility — avoid generic solutions for boards with exposed connectors or BGA components.
- Use conductive foam for ESD-sensitive parts (like microcontrollers and sensors).
- Test your packaging with a “drop test” — simulate a 1.5m drop to ensure the PCBA stays protected.
5. The Real Root Cause: Silos Between Manufacturing Stages
Here’s the harsh truth: Most post-PCBA failures aren’t caused by bad boards. They’re caused by fragmented manufacturing.
Think about it:
- Your PCBA is built by one supplier
- Final assembly is handled by another
- Testing is done in a lab that never talks to the assembly team
- Packaging is outsourced to a third party that doesn’t care about your PCBA’s fragility
Every handoff creates a feedback delay. Small issues — a connector that’s slightly misaligned, a screw that’s too long — stay hidden until they blow up into expensive, batch-killing problems.
Real-World Example & Quick Fixes
A automotive component manufacturer faced this silo problem head-on. Their PCBA supplier built boards with a 1mm longer mounting screw than specified; the assembly partner didn’t notice and used the screws anyway, cracking the PCB every time. The lab tested the PCBA in isolation and never saw the issue — and the packaging team didn’t report the cracked boards until they were already shipped to the customer.
The fix was to break down the silos:
- We created a cross-functional manufacturing team with representatives from PCBA fabrication, assembly, testing, and packaging.
- We set up a shared digital dashboard where every team could log issues (like the long screws) in real time — no more waiting for weekly reports.
For your business:
- Hold weekly sync meetings with all manufacturing partners — don’t rely on email updates.
- Use a shared project management tool (like Asana or Jira) to track issues across stages.
- Assign a single “manufacturing owner” for every product — someone who’s responsible for every step from PCBA design to shipping.
6. Why Integrated Manufacturing Eliminates These Headaches
The solution isn’t better PCBA testing. It’s integrated manufacturing — where PCBA fabrication, assembly, testing, and packaging are managed as one connected process, not separate silos.
When everything is under one roof (or one unified team):
- Mechanical and electrical conflicts are caught early — during prototyping, not mass production
- Assembly team feedback reaches designers and engineers in days, not weeks
- Adjustments are made before you sink money into tooling or large batches
- Responsibility is clear — no more finger-pointing between PCBA suppliers, assemblers, and packagers
Integrated manufacturing doesn’t eliminate challenges entirely. But it closes the gaps that turn small, fixable issues into major manufacturing disasters.
How to Start With Integrated Manufacturing (Even on a Budget)
You don’t need to build a full in-house factory to adopt integrated manufacturing. Start small:
- Partner with a PCBA supplier that also offers assembly services — this reduces handoffs and improves communication.
- Bring testing in-house (or work with a lab that’s willing to collaborate with your assembly team).
- Test packaging designs alongside PCBA prototypes — don’t wait until the final product is ready.
Have You Fought This Battle?
We’ve heard horror stories from engineers and manufacturers across the industry — from a batch of 500 IoT modules ruined by loose cable routing, to a medical device PCB that warped because of over-tightened mounting screws.
Drop a comment below with your worst post-PCBA assembly failure nightmare. We’ll pick one story next month and break down the root cause (and fix) in a follow-up blog.
Final Thought
A qualified PCBA proves one thing: The board works.
But manufacturing success means proving something bigger: The entire product works — consistently, after assembly, after shipping, and after months of real-world use.
When products fail after PCBA testing, the cause is rarely just an electrical problem. It’s a system-level failure — one that ties together structure, assembly processes, quality control, and packaging.
Spotting these hidden pitfalls early isn’t just a way to reduce delays and rework. It’s the secret to building products that don’t just pass tests — they survive the real world.
